Commercial Garage Door Guide: Choosing the Right Door in Cincinnati
Selecting the right commercial garage doors for your business is more than just picking the first option you see. Your choice impacts security, energy efficiency, operational costs, and even your company’s professional appearance. With multiple door types available and varying business requirements, making an informed decision requires understanding your options and priorities.
Whether you operate a warehouse in Cincinnati, manage a manufacturing facility, or run an automotive dealership, the right overhead doors can enhance your daily operations while providing long-term value. This comprehensive guide walks you through the essential information you need to choose commercial garage doors that perfectly match your business needs.
Types of Commercial Garage Doors
Understanding the different types of industrial doors available helps you identify which option best suits your business requirements. Each door type offers unique benefits designed for specific applications and environments. From sturdy steel doors to energy-efficient options, PDQ Garage Doors can help you find the perfect match for your business. Each type of door offers unique features and benefits, designed to enhance security, functionality, and aesthetics. Here are the types of doors we offer.

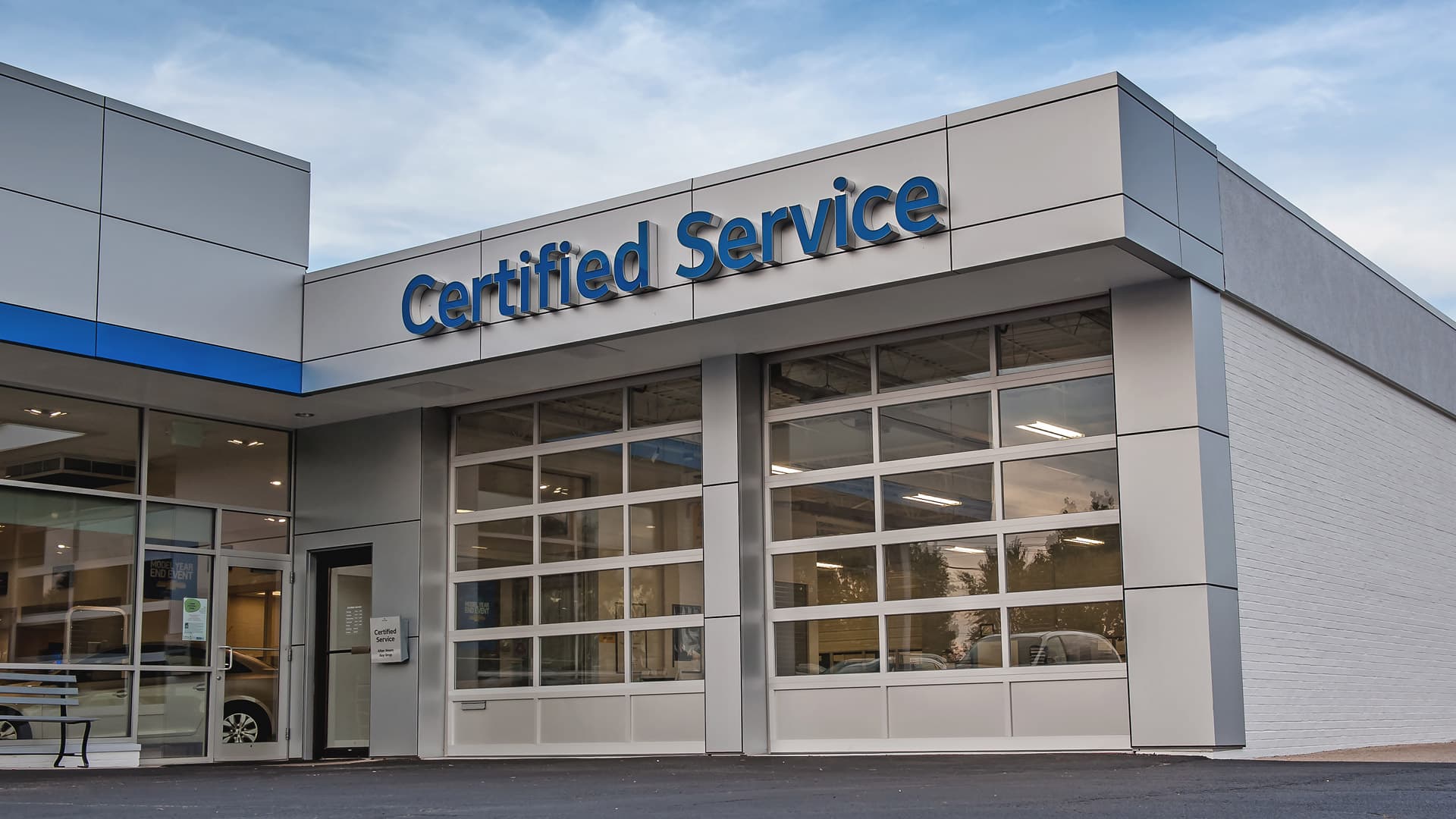

Aluminum Full-View
Aluminum full-view doors are an excellent choice for industries that value natural light, visibility, and a seamless indoor-outdoor connection. From showrooms and retail spaces to restaurants and event venues, these doors offer a combination of functionality, aesthetics, and security. Enhance your space with the beauty and versatility of aluminum full-view doors, creating an inviting atmosphere that leaves a lasting impression on your customers. Optional powder coating in a multitude of colors is available!
Specifications
- R-value: N/A
- Thickness: 2″
- Insulation Type: N/A
- Interior Material: Aluminum / Glass
- Extrerior Material: Aluminum / Glass
- Total Layers: 1 layer
- Construction: Aluminum + Glass
- Available Colors*: Clear Aluminum, White
*Optional powder coating available in a multitude of colors.
Models
- 3290
Features
- Stylish 2″ aluminum stiles with a tongue and groove rail frame construction provide a superior joint strength
- 4″ top and bottom rails and 2″ intermediate rails create additional perimeter strength
- Extrusions feature a closed construction for a rigid frame
- Available in clear anodized or white; optional powder coating available in a multitude of colors
- Hidden through-bolt assembly ensures maximum structural integrity
- Optional aluminum panels may be specified to create solid sections and are available as insulated or non-insulated
- Glass options are ⅛” plain, tinted or frosted (DSB), ⅛” (polycarbonate), ¼” (tempered), or 7/16” (insulated, tempered) glass
- ⅛” plain glass is standard
- Each full-view section utilizes white or black retainers
- Heavy-duty 14-gauge hinges offer stability and longer life
- Long-lasting 10-ball rollers assure consistent, efficient operation
- Bottom U-shaped astragal is standard
Panel Comparison
Designer Lites
Plain Glass
Frosted Glass
Tinted Glass
All Designer Lites are either transparent or semi-transparent.

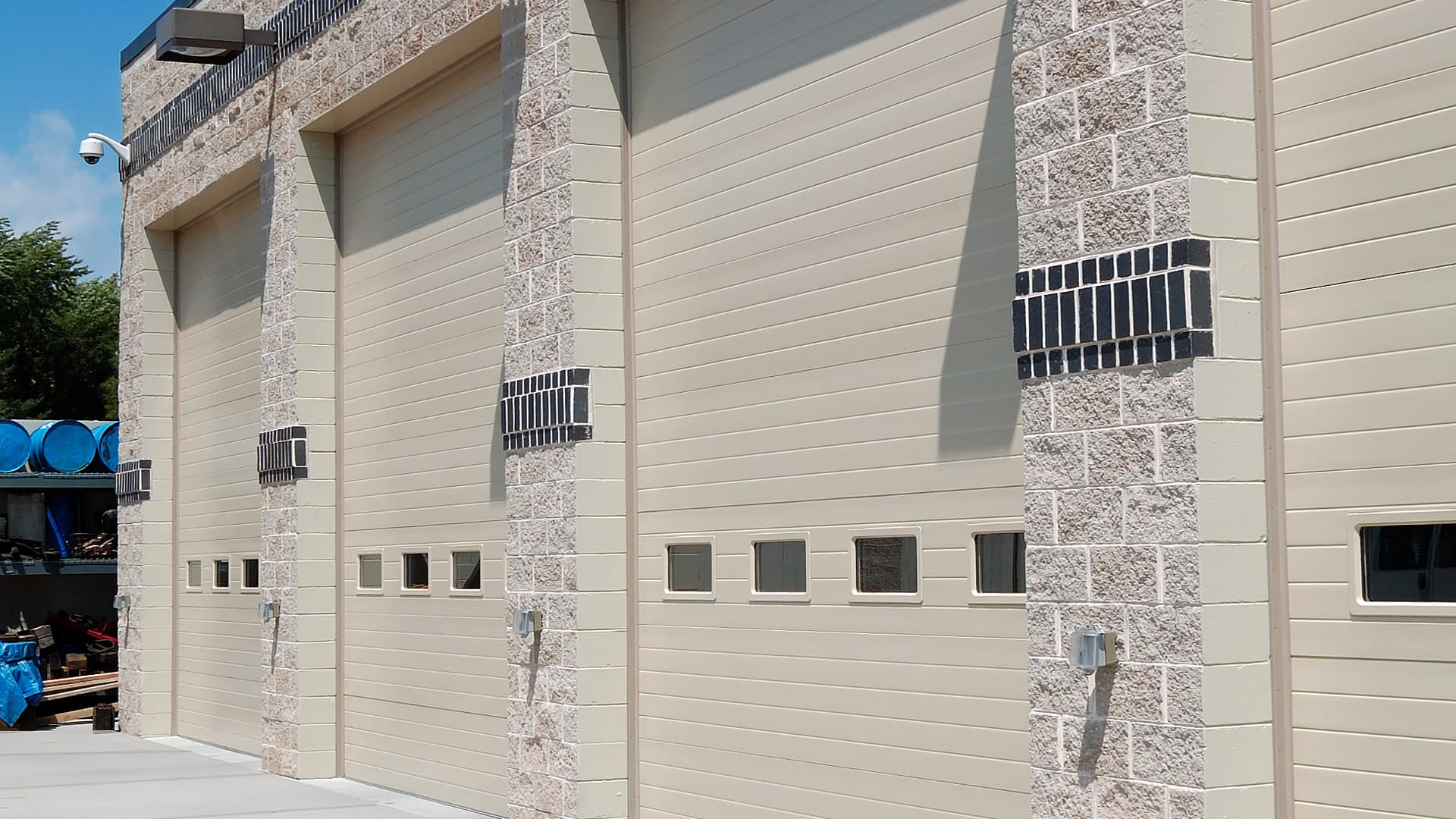

Polystyrene Sandwich
Polystyrene sandwich doors are an ideal choice for industries that require insulation, energy efficiency, durability, and noise reduction. From food processing plants and cold storage facilities to warehouses and manufacturing plants, these doors provide a reliable and efficient solution that meets the unique needs of a range of commercial applications.
Specifications
- R-value: 10.29
- Thickness: 2″
- Insulation Type: Polystyrene
- Interior Material: 27 Gauge steel
- Extrerior Material: 26 Gauge steel
- Total Layers: 3 layer
- Construction: Steel + Insulation + Steel
- Available Colors: White, Almond, Sandstone, or Brown
Models
- 3285: 27 Gauge, Insulated w/ Steel Back
Features
- 26 gauge face and 27 gauge back steel are mechanically locked and bonded to a CFC-free polystyrene core with urethane adhesive for maximum structural integrity
- Tongue and groove meeting rails provide superior joint strength and weather resistance
- Concealed hinge attachment plates run the full height of sections for superior strength
- Rigid exterior end stiles are finish-painted white
- Glass is available in ⅛” float, 7/16” insulated or ¼” tempered glass
- Glass is easily replaced or substituted by removing molded frames
- Exhaust port is optional for bottom section
- Track options include 2” or 3” bracket or clip angle mount and are designed to accommodate virtually any headroom design requirements.
- Track options include 2” or 3” bracket or clip angle mount and are designed toHeavy duty hardware may be specified with 11- or 14-gauge hinges and 10-ball rollers accommodate virtually any headroom design requirements.
- Increased windload requirements may be specified

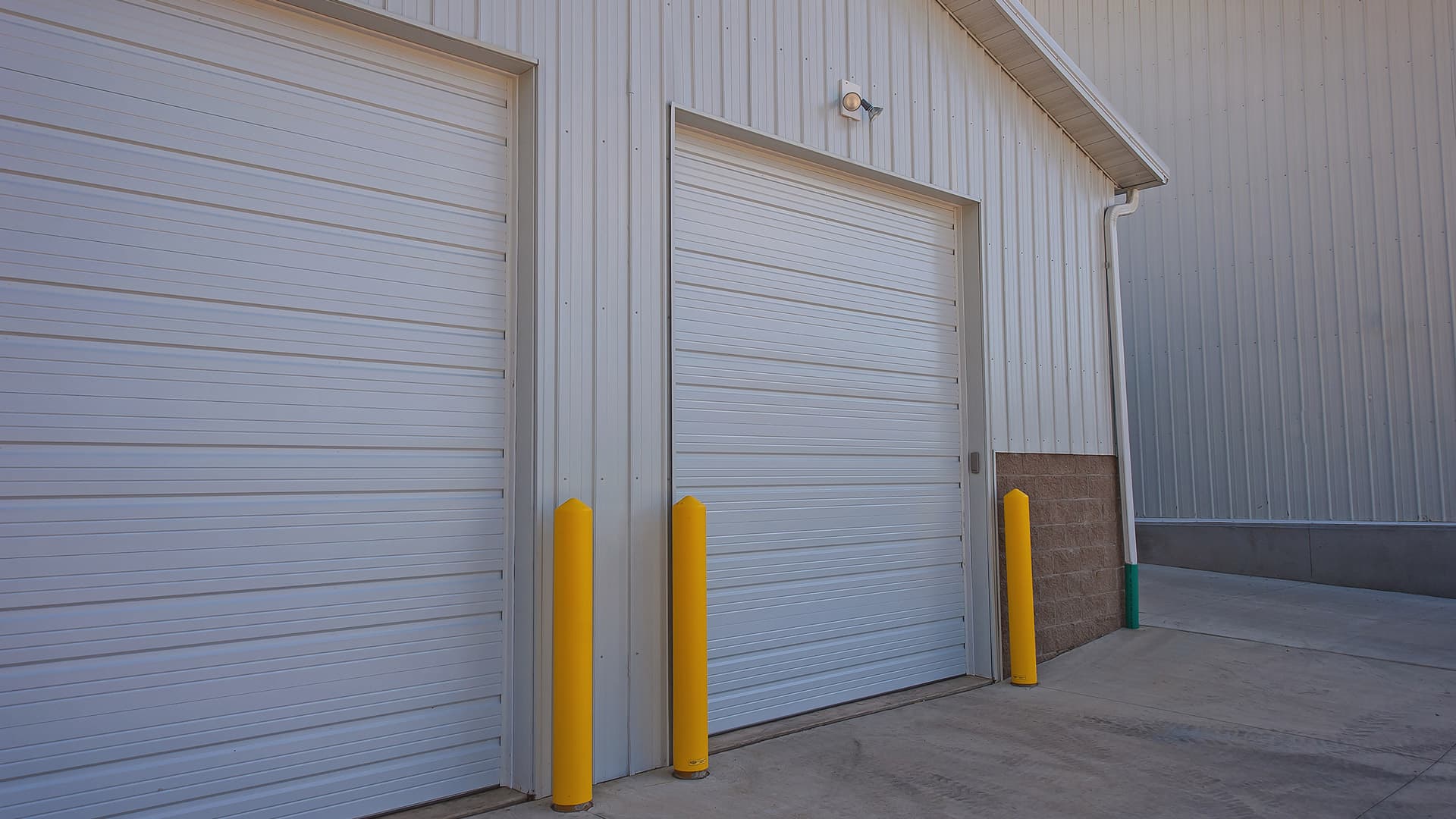

Ribbed Steel
Ribbed steel garage doors are a durable, secure, and visually appealing option for industries ranging from warehouses and manufacturing facilities to automotive dealerships and retail spaces. They offer a winning combination of functionality, aesthetics, and reliability to meet the needs of diverse commercial applications.
Specifications
- R-value: Uninsulated up to 8.0
- Thickness: 2″
- Insulation Type: Polystyrene
- Interior Material: N/A — 27 Gauge steel
- Extrerior Material: 20–25 Gauge steel
- Total Layers: 1–3 layers
- Construction: Steel — Steel + Insulation + Steel
- Available Colors*: White, Brown, Sandstone, or Gray
*All models are available in a finishing coat of white. Additional sandstone, brown and gray finishes are available in models 3240/41/42 only.
Models
- 3250: 25 Gauge, Uninsulated
- 3251: 25 Gauge, Insulated* w/ Vinyl Back
- 3252: 25 Gauge, Insulated* w/ Steel Back
- 3240: 24 Gauge, Uninsulated
- 3241: 24 Gauge, Insulated* w/ Vinyl Back
- 3242: 24 Gauge, Insulated* w/ Steel Back
- 3220: 20 Gauge, Uninsulated
- 3221: 20 Gauge, Insulated* w/ Vinyl Back
- 3222: 20 Gauge, Insulated* w/ Steel Back
*Insulated models R-Value: 8.0
Features
- 2″ thick sections constructed of pre-finished galvanized steel
- Insulated models feature either heavy-duty vinyl or 27-gauge steel backers
- The steel characteristics and thickness used in models 3250/3251/3252 are equivalent to the “nominal 24 gauge” classification used by other manufacturers in the door industry
- Box-shaped stiles are riveted to the face of the section and are galvanized for additional corrosion protection
- Tongue and groove meeting rails provide superior rail strength and weather resistance
- Glass is available in ⅛” DSB, ⅛” Lexan, Insulated or ¼” tempered glass
- Glass is easily replaced or substituted by removing molded frames
- Exhaust port is optional for bottom section
- Track options include 2″ or 3″ bracket or clip angle mount and designed to accommodate virtually any headroom design requirements
- Heavy-duty hardware may be specified with 11- or 14-gauge hinges and 10-ball rollers
- Bottom U-shaped astragal in an aluminum retainer is standard
- Increased windload requirements may be specified

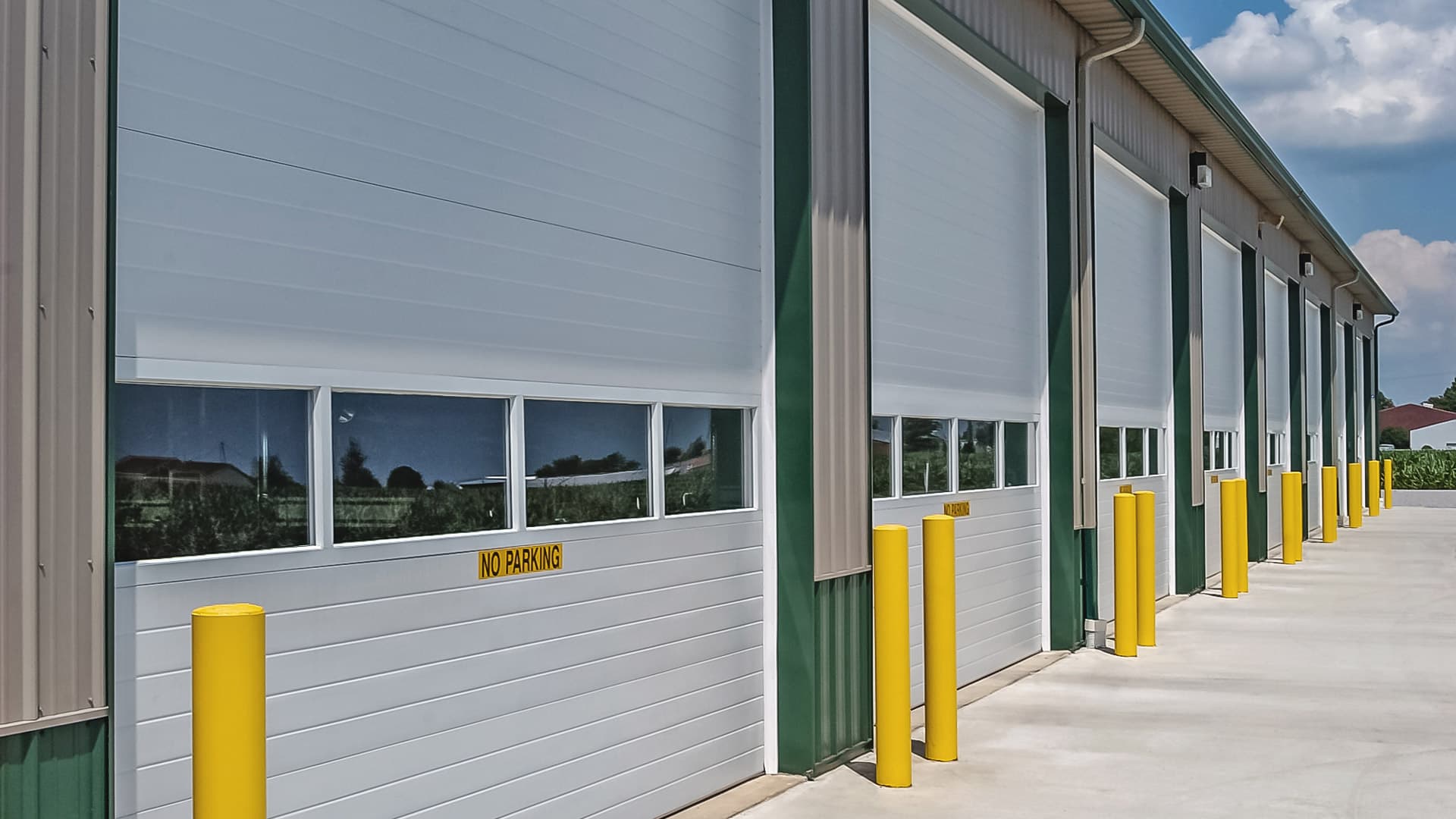

Polyurethane Thermal
Polyurethane thermal doors are utilized in industries that prioritize insulation, energy efficiency, and durability. From food storage facilities and pharmaceutical manufacturers to laboratories and manufacturing plants, these doors provide exceptional thermal performance, protect sensitive materials, and withstand the demands of several commercial applications.
Specifications
- R-value: 17.54
- Thickness: 2″
- Insulation Type: Polyurethane
- Interior Material: 27 Gauge steel
- Extrerior Material: 26 Gauge steel
- Total Layers: 3 layer
- Construction: Steel + Insulation + Steel
- Available Colors: White, Almond, Sandstone, or Brown
Models
- 3216: 27 Gauge, Insulated w/ Steel Back
Features
- Foamed-in-place CFC-free polyurethane core permanently bonds the 26 gauge face and 27 gauge back steel to form a rigid homogeneous section
- 2” thick sections are thermally broken to eliminate convection
- Tongue and groove meeting rails with joint gasketing provide superior joint strength and prevent air infiltration
- Concealed hinge attachment plates run the full height of sections for superior strength
- Rigid exterior end stiles are finish-painted white
- Glass is available in 7/16” insulated or ¼” tempered glass
- Glass is easily replaced or substituted by removing molded frames
- Exhaust port is optional for bottom section
- Track options include 2” or 3” bracket or clip angle mount and are designed to accommodate virtually any headroom design requirements.
- Heavy-duty hardware may be specified with 11- or 14-gauge hinges and 10-ball rollers
- Bottom U-shaped astragal is standard
- Increased windload requirements may be specified
Key Considerations for Commercial Garage Door Selection
Several critical factors influence your commercial garage door choice. Evaluating these considerations ensures your selected doors meet both immediate needs and long-term business goals.
Security Needs
Your business security requirements directly impact door selection. High-value inventory, sensitive materials, or high-risk locations demand robust security features. Steel gauge thickness plays a crucial role in security—20-gauge steel provides maximum resistance to forced entry, while 25-gauge offers adequate security for standard applications.
Consider additional security features like reinforced locking mechanisms, alarm integration capabilities, and impact resistance ratings. Manufacturing facilities and warehouses storing valuable equipment typically require heavy-gauge steel doors with enhanced security features.
Energy Efficiency Requirements
Energy efficiency considerations vary significantly based on your facility’s climate control needs. Businesses maintaining specific temperature ranges require higher R-value doors to minimize energy costs and maintain consistent internal conditions.
Uninsulated doors work well for non-climate-controlled spaces like basic storage warehouses. However, facilities requiring heating or cooling benefit substantially from insulated options. Polyurethane thermal doors provide maximum energy efficiency, while polystyrene sandwich doors offer moderate insulation at lower costs.
Calculate potential energy savings against door upgrade costs to determine the most cost-effective choice for your specific application.
Operational Usage Patterns
Daily usage frequency affects door durability requirements and hardware specifications. High-traffic facilities need heavy-duty hardware components, reinforced track systems, and doors designed for frequent operation.
Consider peak usage times, seasonal variations, and future business growth when evaluating operational requirements. Facilities operating multiple shifts require doors capable of handling continuous use without performance degradation.
Heavy-duty hardware options include 11- or 14-gauge hinges and 10-ball bearing rollers designed for extended service life under demanding conditions.
Aesthetic and Professional Appearance
Your commercial garage doors contribute significantly to your business’s professional image. Customer-facing businesses benefit from doors that complement architectural style and enhance curb appeal.
Aluminum full-view doors create modern, professional appearances perfect for showrooms and retail spaces. Traditional ribbed steel doors offer classic industrial aesthetics suitable for manufacturing and warehouse facilities.
Color options and finish choices allow customization to match existing building colors and branding elements. Professional appearance enhances customer confidence and property values.
Making the Right Choice for Your Business in Cincinnati
Choosing the right commercial garage doors involves balancing security, energy efficiency, operational needs, and budget. Start by identifying your primary requirements and assessing how different door types meet them.
Consulting with local Cincinnati garage door professionals can help ensure you choose doors that deliver optimal performance and value. Experts can offer detailed assessments tailored to your needs.
Commercial garage doors are a long-term investment. Quality doors from reputable manufacturers offer better durability, lower maintenance costs, and improved performance compared to cheaper alternatives.
When deciding, consider warranty coverage, service availability, and access to replacement parts, as these factors affect long-term costs and reliability.
The right garage doors will impact your daily operations, energy use, and security. Make a smart choice to ensure years of dependable performance.
